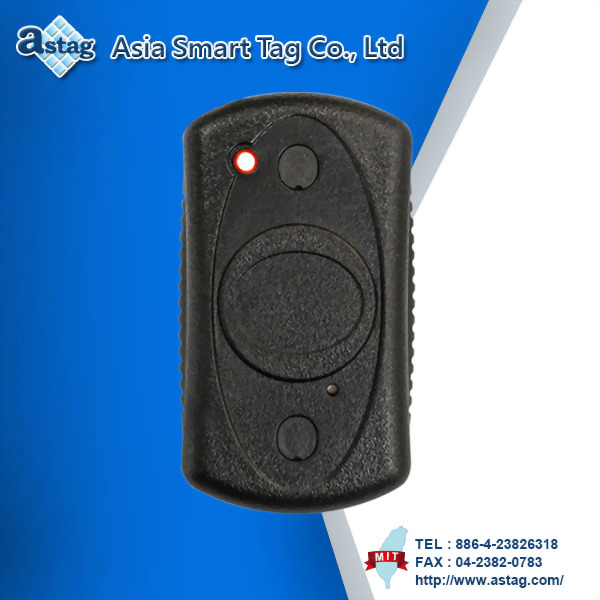

RFID低頻讀取器-UART
Frequency：125 KHz
Read range：Up to 15 cm(depend on Tag)
型號 :
PRL588R
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | Up to 15 cm(depend on Tag) | |
| Host interface | UART | |
| Wiegand | ||
| RS-232 | ||
| RS-485 | ||
| BLE | ||
| WiFi(option) | ||
|
Virtual Com Port |
||
| Modulation | ASK | |
| Transfer rate | 848 Kbps(customizable) | |
| UART data rate | 57600, N, 8, 1(customizable) | |
| Input voltage range | 9 V ~ 12 V DC | |
| UART interface voltage | 3.3 V DC | |
| Operating temperature | -30℃ to +55℃ | |

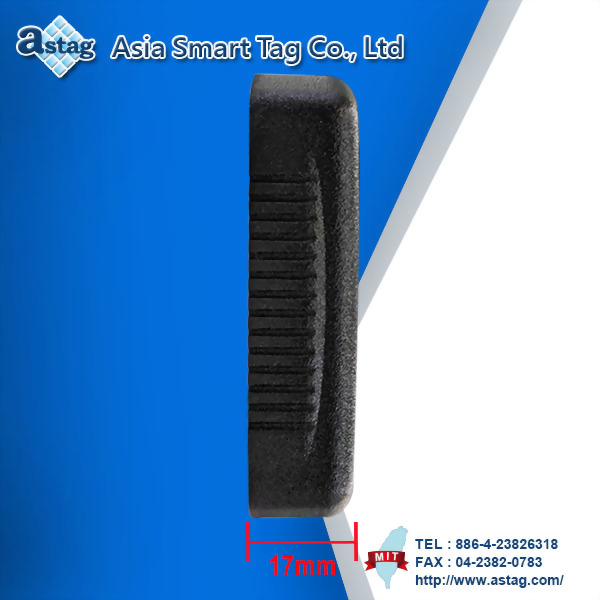

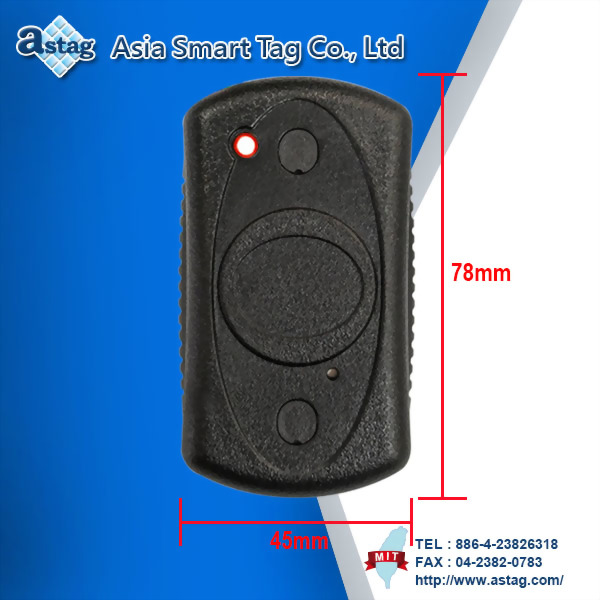

| Dimensions | 78 x 45 x 17 mm(L x W x H) | |
- ．UART介面
- ．可以選擇Wiegand，RS-232，RS-485，BLE，WiFi
- ．資料傳輸可以客製化
接口
Product number |
PRL588R | PRL588U | PRL588I | PRL588W |
Interface |
UR | USB | I2C | Wiegand |
Product number |
PRL588B | PRL588D | PRL588L | PRL588F |
Interface |
RS232 | RS485 | BLE | WIFI |
