• RFID 低頻讀取器 – UART

RFID 低頻讀取器 – UART


Frequency:125 KHz
Read range:Up to 15 cm(PCL-05)
型號 : PRL578R

Frequency band 125 KHz
Read range Up to 15 cm(PCL-05)
Host interface UART
Wiegand
RS-232
RS-485
BLE
WiFi (option)
Modulation ASK
FSK
PSK
UART data rate 57600, N, 8, 1(customizable)
Input voltage range 9V ~ 12 V DC
Operating temperature -30℃ to +55℃

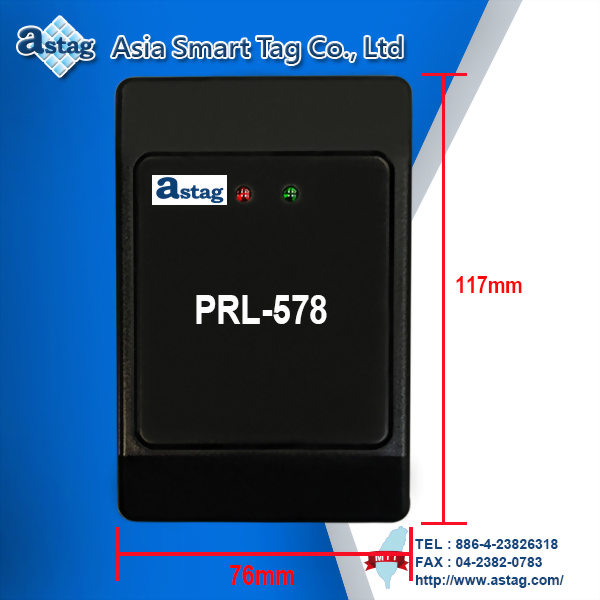

Dimensions 117 x 76 x 20 mm(L x W x H)

  • .UART介面
  • .可以選擇Wiegand,RS-232,RS-485,BLE,WiFi
  • .資料傳輸可以客製化


接口

Product number

PRL578R PRL578U PRL578I PRL578W

Interface

UR USB I2C Wiegand

Product number

PRL578B PRL578D PRL578L PRL578F

Interface

RS232 RS485 BLE WIFI

產品介紹
