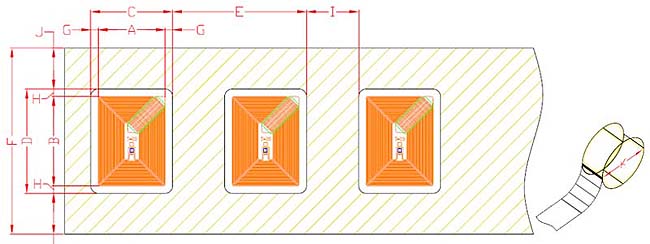

Label

型號 : PLH022028

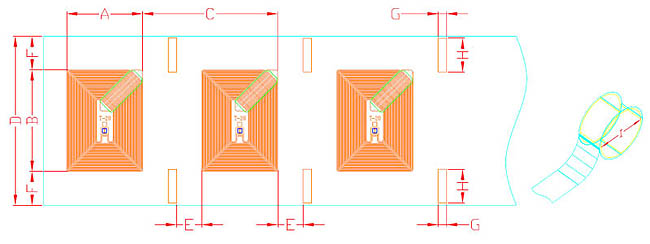

Inlay Label
Iteam number PIH018024 PLH022028
Size 18 x 24 mm(L x W) 22 x 28 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader)
Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 14443A
IC item Mifare S50
Mifare S50 UID 7 Byte
Mifare series
※Any IC is acceptable

電子標籤
