電子標籤
型號 :
PLH-096116
| Inlay | Label | |
| 產品編號 | PIH092112 | PLH096116 |
| 尺 吋 | 92 x 112 mm(L x W) | 96 x 116 mm(L x W) |
| 頻 率 | 13.56 MHz ±3% | |
|
讀取範圍 (取決於讀取器) |
Up to 10cm | |
| 測試機台 | PRH578 | |
|
傳送原理 (Transmission principle) |
被動 (passive) | |
|
天線基板 (Antenna substrate) |
PET | |
|
天線材質 (Antenna material) |
銅 (Copper) | |
|
標籤封面材料 (Label Cover material) |
- |
Glossy Paper (PP PEPA Paper) |
|
管材材質 (Tube material) |
ABS | |
|
管材尺寸 (Tube size) |
3 Inch | |
| 包裝方式 | 1000 pcs/roll , 4 roll/carton | |
| 工作溫度 | -30°C ~ 75°C | |
| 儲存溫度 | -20°C ~ 75°C | |
| ISO 標準 | ISO-14443A / ISO-14443B / ISO 15693 | |
|
IC 項目 (IC item) |
Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※任何 IC 都可接受 (可客製化) |
|

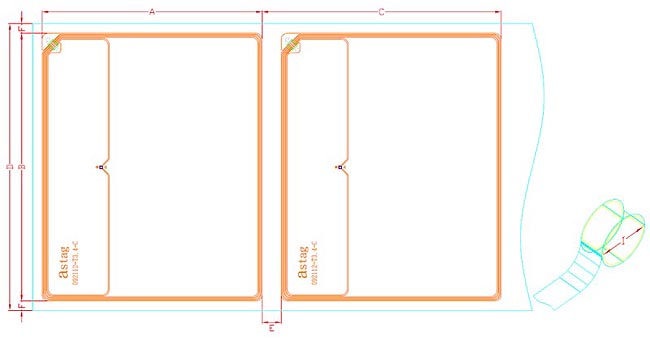

尺寸圖
| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 92 | ±0.2 | B | 112 | ±0.2 |
| C | 100 | ±0.3 | D | 120 | ±0.3 |
| E | 8 | ±0.2 | F | 4 | ±0.5 |
| G | 76.2 | ±0.5 | Frequency | 14.30Mhz | ±3% |

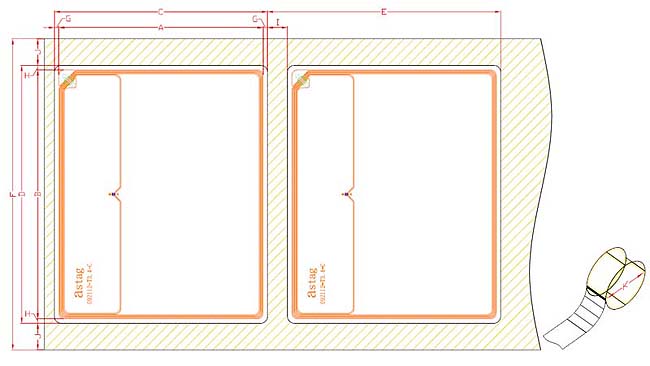

Label
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 92 | ±0.2 | B | 112 | ±0.2 |
| C | 96 | ±0.2 | D | 116 | ±0.2 |
| E | 105 | ±1.5 | F | 140 | ±1 |
| G | 2 | ±1.5 | H | 2 | ±1.5 |
| I | 9 | ±1.5 | J | 12 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
