型號 : PLH019019

Inlay Label
Iteam number PLH019019
Size 15 x 15 mm(L x W) 19 x 19 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader)
Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 14443A
IC item Mifare S50
Mifare S70
Mifare S50 UID 4 Byte
Mifare S50 UID 7 Byte
Mifare ulturelight
※Any IC is acceptable

尺寸圖

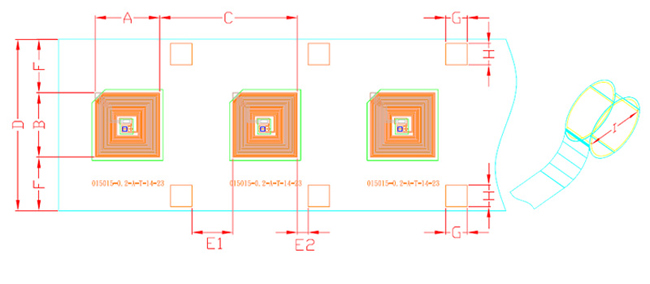

Inlay Size Information         (Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 15 ±0.2 B 15 ±0.2
C 32 ±0.3 D 40 ±0.3
E1 9.5 ±0.2 F 12.5 ±0.5
E2 2.5 ±0.2 H 5 ±0.1
G 5 ±0.1 Frequency 13.56Mhz ±3%
I 76.2 ±0.5


Label

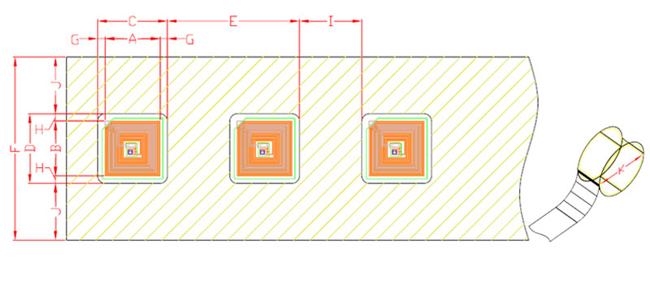

Label Size Information         (Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 15 ±0.2 B 15 ±0.2
C 19 ±0.2 D 19 ±0.2
E 36 ±1.5 F 50 ±1
G 2 ±1.5 H 2 ±1.5
I 17 ±1.5 J 15.5 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%

  • .可用於汽車管理,物流管理,倉庫管理,門禁管理,實用性廣泛
  • .品質穩定
  • .方便追蹤與管理
  • .客製化服務
