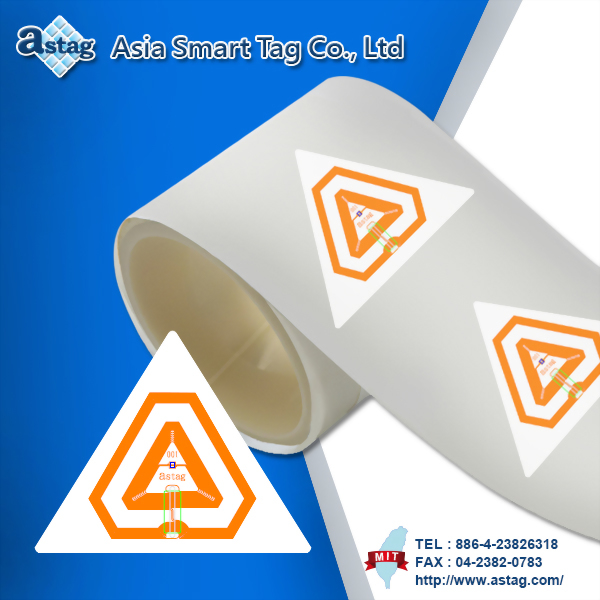

高頻防拆標籤
型號 :
PIH-036031 & PLH-050044
| Inlay | Label | |
| 頻 率 | 13.56 MHz ±3% | |
| 尺 吋 | 36 x 31 mm(L x W) | 50 x 44 mm(L x W) |
|
傳送原理 (Transmission principle) |
被動 (passive) | |
|
天線基板 (Antenna substrate) |
PET | |
|
天線材質 (Antenna material) |
銅 (Copper) | |
|
標籤封面材料 (Label Cover material) |
Glossy Paper (PP PEPA Paper) | |
|
管材材質 (Tube material) |
ABS | |
|
管材尺寸 (Tube size) |
3 Inch | |
| 工作溫度 | -20℃ ~ +75℃ | |
| 包裝方式 | 500pcs / roll | 1000pcs / roll |
| 4 roll / carton | 4 roll / carton | |
| ISO 標準 | ISO-14443A / ISO-14443B / ISO 15693 | |
|
IC 項目 (可客製) |
I-Code series / NFC series / ST25T series | |
尺寸圖
Inlay
Roll Dimension
Inlay Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
36
±0.2
B
31
±0.2
C
55
±0.3
D
48
±0.3
E1
31
±0.2
F1
13
±0.5
E2
20
±0.2
F2
4
±0.5
G
4
±0.1
H
5
±0.1
I
76.2
±0.5
Frequency
13.56Mhz
±3%
Label
Label Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
36
±0.2
B
31
±0.2
C
50
±0.2
D
44
±0.2
E
60
±1.5
F
60
±1
G
7.27
±1.5
H
2.5
±1.5
I
9.66
±1.5
J
5
±1.5
K
76.2
±0.5
Frequency
13.56Mhz
±3%
- ．用於產品防盜。
- ．一次性使用標籤可以防拆。
