高頻防拆標籤
型號 :
PIH-039039 & PLH-050050
| Inlay | Label | |
| 頻 率 | 13.56 MHz ±3% | |
| 尺 吋 | 39 x 39 mm(L x W) | 50 x 50 mm(L x W) |
|
傳送原理 (Transmission principle) |
被動 (passive) | |
|
天線基板 (Antenna substrate) |
PET | |
|
天線材質 (Antenna material) |
銅 (Copper) | |
|
標籤封面材料 (Label Cover material) |
Glossy Paper (PP PEPA Paper) | |
|
管材材質 (Tube material) |
ABS | |
|
管材尺寸 (Tube size) |
3 Inch | |
| 工作溫度 | -20℃~ +75℃ | -20℃~ +75℃ |
| 包裝方式 | 1000 pcs / roll | |
| 4 roll / carton | ||
|
ISO 標準
|
ISO-14443A / ISO-14443B / ISO 15693 | |
|
IC 項目 (可客製)
|
I-Code series / NFC series / ST25T series | |
尺寸圖

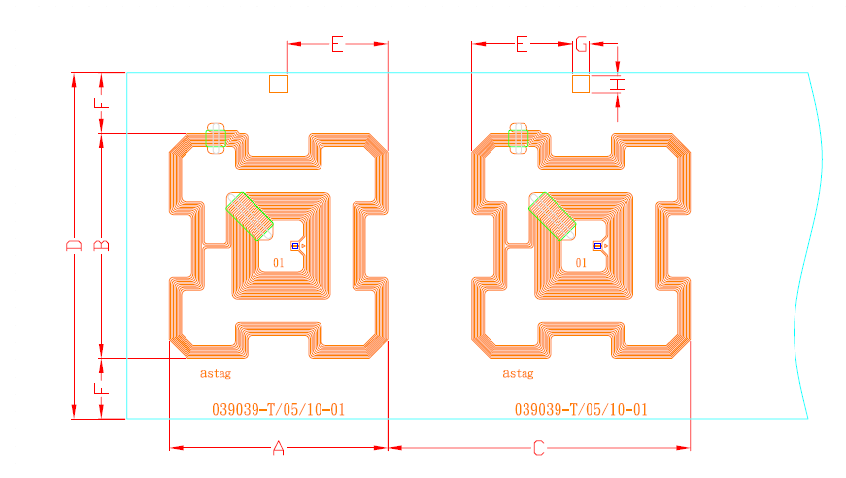

Inlay
Roll Dimension
Inlay Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
39
±0.2
B
39
±0.2
C
54
±0.3
D
60
±0.3
E
18
±0.2
F
10.5
±0.5
G
3
±0.1
H
3
±0.1
I
76.2
±0.5
Frequency
13.90Mhz
±3%

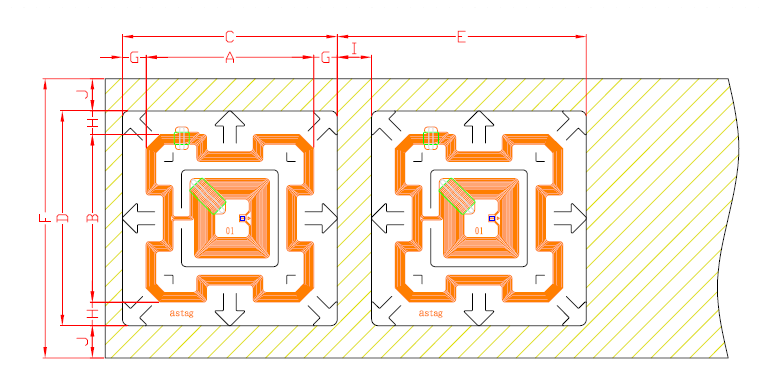

Label
Roll Dimension
Label Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
39
±0.2
B
39
±0.2
C
50
±0.2
D
50
±0.2
E
58
±1.5
F
65
±1.0
G
5.5
±1.5
H
5.5
±1.5
I
8
±1.5
J
7.5
±1.5
K
76.2
±0.5
Frequency
13.56Mhz
- ．用於產品防盜。
- ．一次性使用標籤可以防拆。
