Label

型號 : PLU024065

  • .超高頻遠端標籤
  • .可用於車道系統、物流、倉庫管理,實用性廣泛
  • .方便攜帶以及黏貼
  • .方便追蹤及管理
Inlay Label
Iteam number PIU017046 PLU024065
Size 17 x 46.5 mm(L x W) 24 x 65 mm(L x W)
Frequency band 866~928 MHz Band
Read range
(Depends on the reader)
Up to 8M
Testing reader 1PRU258A0R2
Transmission principle HDX(Half Duplex)
EPC 96-bits EPC Memory, extensible to 480-bits
Functionality Read / Write
Modulation ASK
Antenna material Copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Label cover color * - White(Can color printing,
marking)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 18000 - 6C(EPC C1 G2)
IC item Alien Higgs 4
Alien Higgs 9
Impinj Monza 4
※Any IC is acceptable

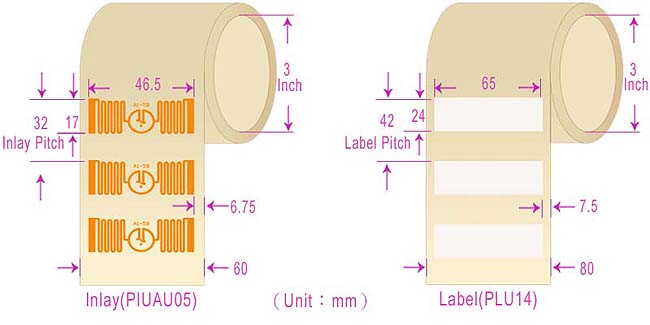

尺寸圖


電子標籤
