ISO 標準
|
ISO-15693
|
頻 率
|
13.56MHz Band
|
IC
|
I-code SCI,I-code SCIX,I-code SCIx2,
Mifanr S50,st-25TV02K,Ti-pius
|
天線尺寸
|
47*47 mm
|
工作溫度
|
-30℃ ~80℃
|
儲存溫度
|
25℃ ~70℃
|
包 裝
|
2000pcs,4rolls/ctn
|

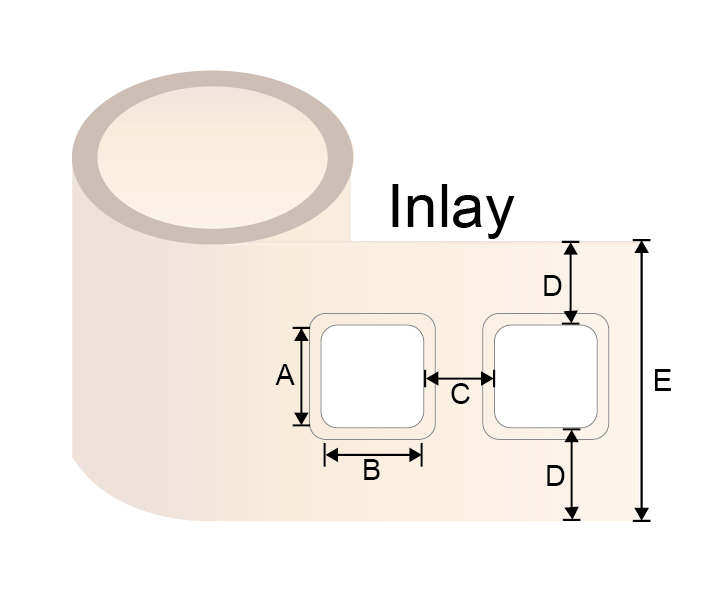

Inlay Size Information
|
(Unit:mm)
|
Position
|
Size
|
Tolerance
|
Position
|
Size
|
Tolerance
|
A
|
47
|
± 0.2
|
D
|
5
|
± 0.2
|
B
|
47
|
± 0.2
|
E
|
56
|
± 0.2
|
C
|
7.5
|
± 0.2
|
|
|
|
Label Size Information
|
(Unit:mm)
|
Position
|
Size
|
Tolerance
|
Position
|
Size
|
Tolerance
|
A
|
50
|
± 0.2
|
D
|
3.5
|
± 0.2
|
B
|
50
|
± 0.2
|
E
|
56
|
± 0.2
|
C
|
5
|
± 0.2
|
F
|
1.5
|
± 0.2
|
.可用於汽車管理,物流管理,倉庫管理,門禁管理,實用性廣泛
.品質穩定
.方便追蹤與管理
.客製化服務
