RFID 超高頻 模組-UART

型號 : PRUA0CFR01

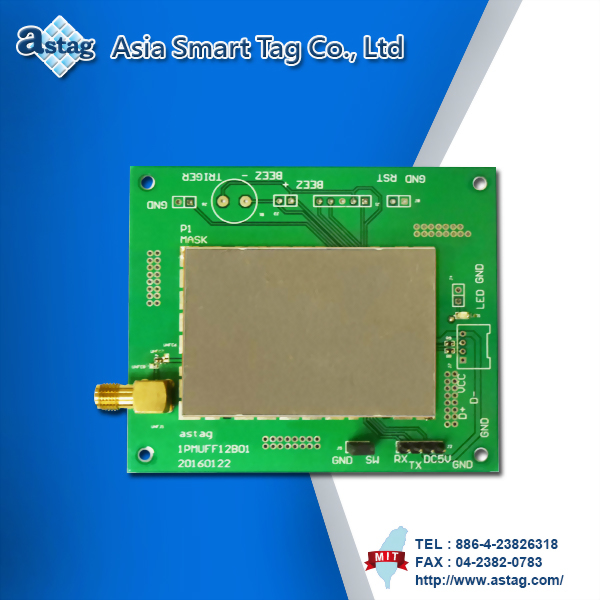

  • Interface RFID UHF Reader Module - UART
    Part number PRUA0CFR01
    Frequency band 860 ～ 960 MHz
    Reading range Around 1 / 2 / 3 m(dependent on ANT type)
    Serial protocol 115200, N, 8, 1(option)
    External control Reset
    Buzzer
    LED
    Control switch
    Support protocol EPC C1G2
    ISO18000-6C
    Power supply 5V
    Standby current 15mA
    Dynamic mode 80 / 105 / 260 mA dependent on
    RF Output Power type
    RF output power 12 dbm
    18 dbm
    25 dbm
    Storage temperature 0℃ ~ 30℃
    Operating temperature -30℃ ~ 65℃
    Dimensions 82(L) x 64(W) x 15(H) mm
    ．UART 接口
    ．RS-232 可選配
    ．內建天線
    ．外接天線
    ．數據傳輸可以定制

    Interface
    Product
    number    		 PRUA0CFR01 PRUA0CFB01 PRUA0CFU01
    Interface UART RS232 USB
  • RS-232 (option)
